Deyang, Sichuan Aug 10, 2026 (Issuewire.com) - The Imperative for Professional Waterproofing Material Selection
Industrial facilities, agricultural shelters, and commercial warehouses frequently encounter harsh operational environments characterized by high humidity, chemical emissions, and severe weather fluctuations. Standard roofing solutions, particularly traditional galvanized or color-coated steel sheets, suffer from rapid corrosion and oxidation in these settings, leading to premature structural failure and persistent leakage. Selecting an appropriate roofing material remains a critical factor for ensuring long-term structural integrity and minimizing ongoing maintenance expenses. As a specialized China durable round wave roof tiles enterprise, Sichuan Jinbei’er Building Materials Co., Ltd. (JBE) supplies engineered polymer systems designed to address these specific industrial challenges. Understanding the technical profiles and material formulations of modern synthetic resin and polyvinyl chloride sheets allows project managers to make informed decisions that mitigate water infiltration risks effectively.
Modern building designs prioritize structural longevity and low maintenance overhead, driving the adoption of advanced thermoplastic components. In highly corrosive environments, such as chemical processing plants or coastal storage units, moisture combined with airborne pollutants accelerates the degradation of conventional metal roofing. To counteract these operational challenges, JBE utilizes multi-layer co-extrusion technology to manufacture high-performance solutions, specifically the Round Wave Resin Corrugated Sheet. This manufacturing technique integrates distinct functional layers into a single cohesive profile, establishing a robust defense against water penetration and structural weathering without relying on temporary surface coatings.

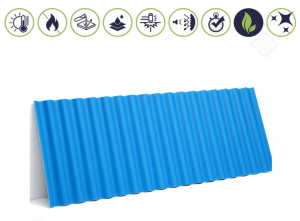

Waterproofing Mechanism of Round Wave Resin Corrugated Sheets
The multi-layer architecture of the durable round wave roof tiles provides a reliable mechanical barrier against comprehensive water infiltration. The exterior surface consists of an acrylic styrene acrylonitrile layer, which exhibits excellent stability against ultraviolet radiation and extreme thermal fluctuations. This protective shield prevents the underlying structural material from becoming brittle or discolored over time. Beneath this exterior protection, the core layer incorporates high-grade polyvinyl chloride or unplasticized polyvinyl chloride compounds. These materials possess inherent resistance to acidic and alkaline environments, ensuring that the sheets do not rust when exposed to chemical vapors or coastal salt spray.
Physical stability represents another critical factor in preventing water leakage. Traditional roofing materials undergo significant thermal expansion and contraction, which stresses fasteners and widens installation gaps. The engineered polymer sheets manufactured by Sichuan Jinbei’er Building Materials Co., Ltd. demonstrate a low coefficient of thermal expansion and maintain structural integrity across a broad temperature range from negative forty degrees Celsius to seventy degrees Celsius. This thermal stability ensures that the material does not develop micro-cracks during sudden temperature drops, preventing moisture from seeping into the interior matrix. Furthermore, the lightweight nature of these sheets reduces the overall dead load on supporting frameworks, preventing structural deflections that cause joints to separate. The round wave profile allows for seamless overlapping, which eliminates mid-sheet joints and lowers the vulnerability of the entire roof assembly.
Buyer's Guide: Four Critical Technical Indicators for Project Procurement
When selecting roofing materials for large-scale engineering projects, procurement specialists must evaluate specific parameters to ensure adequate waterproofing and long-term durability. A comprehensive buyer's guide focuses on four critical technical indicators.
1. Wave Profile Compatibility
Wave profile compatibility determines the efficiency of water drainage and installation alignment. The Round Wave 1130 model features precise wave distances and heights that align efficiently with standard purlin configurations. This geometric consistency facilitates direct replacement or integration with older corrugated systems without requiring extensive modifications to the underlying steel supports. Proper profile matching ensures that heavy rainfall flows smoothly along the channels without pooling at the overlapping seams.
2. Thickness and Weather-Resistant Layering
Material thickness and weather-resistant layering must match the environmental severity of the project site. For industrial zones prone to acid rain or agricultural operations with high ammonia emissions, selecting an unplasticized polyvinyl chloride base or an acrylic styrene acrylonitrile surface thickness of at least 0.15 millimeters is necessary. Total sheet thickness options generally range from 1.5 millimeters to 3.0 millimeters. Selecting the appropriate thickness depends on the specific wind load requirements and purlin spans of the project, ensuring that the panels remain rigid under physical stress.
3. Length Customization for Reducing Joints
Length customization minimizes the number of horizontal overlapping joints, which represent primary failure points in roofing systems. Sichuan Jinbei’er Building Materials Co., Ltd. supports precise length configurations tailored to specific structural layouts. For standard shipping logistics, panel lengths are optimized up to 5.8 meters for twenty-foot containers and up to 11.8 meters for forty-foot containers. Utilizing continuous panels across the roof slope reduces the necessity for intermediate end laps, thereby eliminating potential channels for capillary water drawing.
4. Matching Ridge Caps and Waterproof Accessories
The inclusion of matching original accessories ensures the continuity of the waterproofing layer. A round wave roof tiles enterprise must supply compatible ridge caps and specialized fastening assemblies to maintain a sealed system. JBE produces matching ridge components that mirror the precise curvature of the primary sheets, alongside waterproof fixing elements equipped with durable ethylene propylene diene monomer rubber washers. These components seal the fastening points against wind-driven rain, preventing moisture from bypassing the primary barriers.
Customization Services and Typical Project Applications

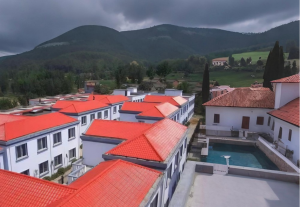

The practical application of these polymer systems spans various construction sectors, demonstrating the versatility of customized manufacturing. Industrial cladding, agricultural shelters, commercial complexes, residential villas, park pavilions, and public infrastructure projects all utilize these durable profiles to secure long-term protection. As an established round wave roof tiles enterprise, JBE implements strict quality control protocols aligned with international standards to ensure consistent dimensional accuracy and material formulation across all production batches.
Customization capabilities extend beyond length adjustments to include specific color formulations and customized structural thicknesses, allowing contractors to satisfy distinct architectural guidelines. With extensive experience exporting to over thirty countries, Sichuan Jinbei’er Building Materials Co., Ltd. addresses diverse regional building codes and environmental conditions. This global operational insight enables the enterprise to deliver optimized packaging and structured technical support, assisting installation teams in maintaining strict project schedules while minimizing installation errors that compromise water tightness.
Structural Selection Principles for Long-Term Sealing
Successful moisture control in modern building projects depends on selecting appropriate wave geometries and durable, weather-resistant materials. The integration of advanced co-extruded polymers offers a reliable alternative to traditional metal sheeting, providing long-term resistance to corrosion and environmental degradation. By focusing on precise profile matching, appropriate layer thickness, custom panel lengths, and integrated original components, engineering projects achieve a secure and reliable roof seal. The round wave series developed by JBE illustrates how specialized manufacturing addresses these technical requirements, delivering functional durability for diverse construction challenges worldwide.
