Langfang, Hebei Jun 10, 2026 (Issuewire.com) - If you run a real tunneling project or an underground mining face, you know that buying the wrong drill ruins your budget faster than almost anything else. You aren't just looking at fancy numbers on a catalog; you need a machine that won't leave your crew sitting around waiting for spare parts while water leaks into the air lines. Finding a reputable Top Rated YT27/YT28/YT29A Air Leg Rock Drill Manufacturer In China, a tough Pneumatic Air Leg Rock Drill that handles daily abuse without blowing out its internal valves is the only way to keep your footage on track and your costs down. This practical guide cuts through the corporate talk to show you exactly how to match the industry-standard YT series to your actual rock face.
When you buy a Pneumatic Rock Drill, you have to look at what happens on the late shift when the air pressure drops and the rock gets extra hard. If you choose a machine that doesn't match your air supply or your rock hardness, you will end up with broken drill rods, cracked housings, and operators who refuse to lift the tool because it shakes their arms to pieces. Let's look at the actual steps to choosing a drill that keeps your crew moving forward.
Craftsmanship, Precision Details & Technical Advantages of SHENLI Drills
Out in the shaft, a drill gets dropped in the mud, slammed against rock walls, and run for hours by operators who just want to get the blasting holes finished. Cheap drills start losing their punch within a few shifts because their internal parts get loose or scratched. SHENLI builds drills specifically to handle this kind of field abuse:
- Zero Air Waste with 3-Micron Fits:If you hear your big diesel compressors running at full throttle while your drills just bounce around, you have an air bypass problem. SHENLI grinds its internal cylinders and valve chests down to a super-tight 3-micron limit using precision CNC milling. This means the air stays trapped behind the piston where it belongs, giving you maximum hitting power even if your air hose stretches hundreds of meters down a deep shaft.
- Tough Quenched Steel Keeps the Rifle Bar Spinning:The piston and rifle bar take a massive beating every time the bit hits a hard quartz vein. To stop these parts from snapping or wearing flat, SHENLI bakes them in sealed, atmosphere-controlled quench furnaces. This heat-treatment gives the steel a hard outer shell that resists abrasion, but leaves the inside flexible enough to twist and absorb the sudden torque when a bit gets stuck in a fractured rock seam.
- No-Leak Air-Water Valves Protect the Engine:For wet drilling, you need water to keep the dust down, but bad valve setups often let that water leak back into the air cylinder. This washes away the lubricating oil and causes the inside to rust overnight. SHENLI’s backhead controls use a strict mechanical linkage that ensures air always blows out the mud before the water starts flowing. Combined with built-in rubber dampeners in the handle, it keeps the machine running clean and protects your workers from bad hand-arm vibration.
Step 1: Look at Your Actual Rock Hardness
Your rock face tells you exactly what kind of drill you need. If you are drilling through softer limestone, shale, or weathered sandstone, you don't need raw, bone-crushing force—you need a fast cycle speed that chips the rock away without causing the drill rod to bounce back violently and shake the operator.
But if your crew is staring at solid granite, basalt, or heavy iron ore, you need a Rock Drilling Machine with high-frequency impact and serious rotation torque. If your machine doesn't have enough twisting power, the bit will get bound up in the hole every few minutes, forcing the team to waste time trying to pull a stuck rod out of the wall.
Step 2: Check Your Tunnel Space and Angles
The size of your workspace dictates your setup. In tight mining veins or small utility tunnels, a massive rig just won't fit, and your crew won't have room to position it. Operators need something light enough to move fast but stable enough to hold a straight line against the rock face.
For big railway tunnels or wide highway cuts, you need heavy-duty air legs that can hold the machine steady for horizontal blasting holes, high anchoring pins, or roof-bolting jobs. The weight of the drill needs to balance perfectly with the air pressure inside the leg so the operator doesn't have to push or lift with their own muscle during a long shift.

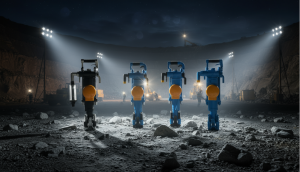

Step 3: Pick the Right Model for Your Crew
Once you know your rock type and tunnel size, you can find a balance between performance and your target YT27/YT28/YT29A Rock Drill Price. The SHENLI YT series divides the work into three distinct sizes:
The Versatile YT27 for Mixed Ground
If your geological maps show a mix of different rock layers and you need a tool that can do a bit of everything, the YT27 /YT28/YT29A air leg rock drill family is where you start. The YT27 model weighs about 27 kilograms and runs perfectly on standard 0.4 to 0.6 MPa job site air lines. It uses a smart steel-pulley setup and separate rotation gears to drill holes from 34 to 45 millimeters wide and up to 5 meters deep. It’s the go-to tool for medium-sized tunnels and local quarries where the rock type changes from week to week.
The Reliable YT28 Workhorse
For high-speed production drilling in stable tunnels or massive highway projects, the YT28 is the industry standard. It’s built specifically for medium to hard rock walls. SHENLI designed the valve chest to cycle the piston faster, meaning it hits harder while using less air volume than older machines. At 26 kilograms, it won't break your operators' backs, and the centralized controls on the back head let the worker adjust the water, the leg pressure, and the impact power from one single spot without stopping the work.
The Heavy-Hitting YT29A Powerhouse
When you are dealing with extra-hard granite, abrasive quartz, or iron ore, you need the absolute maximum force you can get. That is where the YT29A comes in. Weighing 29 kilograms, it uses a wider cylinder bore to pack massive kinetic energy into every single blow. It doesn't slow down or stall when the bit hits abrasive rock. Paired with a long-extendable FT160A air leg, this machine gives you the rock-solid thrust needed to drive straight holes at steep upward angles without wandering.
Step 4: Verify Your Air Lines and Fleet Specs

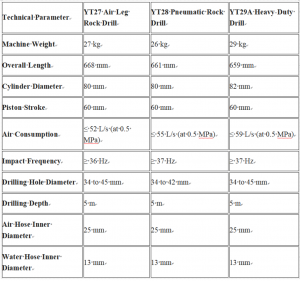

Before you buy a whole fleet of drills, you need to make sure your on-site air supply can handle them. Checking the full YT27/YT28/YT29A Rock Drill technical lineup ensures that your compressor bank has enough volume to run multiple tools at the same time. Whether you choose the standard YT series or want to look at a heavier YT27/YT28/YT29A Pneumatic Rock Drill, matching the actual air consumption to your site's manifold keeps your lines from losing pressure when three or four miners start drilling at once.
Step 5: Check Parts Support and Factory Testing
The worst thing that can happen to a mining site is waiting weeks for a simple wear part while a tunnel sits empty. A smart buying strategy means checking that your supplier actually supports the equipment after it leaves the shop.

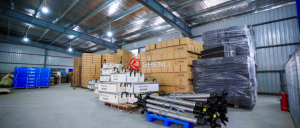

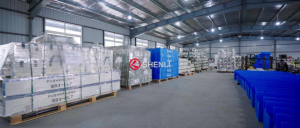

To ensure international quality standards, SHENLI operates strictly under ISO9001:2015 and CE certifications. Every single drill is tested on a dynamic testing platform to check the torque, air seals, and blow frequency before it gets packed in a box. More importantly, they keep standard wear items—like water needles, pawls, rifle nuts, and rotation sleeves—ready to ship immediately, so you don't lose days of work over a broken rubber seal.
Keeping the Drills Running on the Late Shift
In a hard-rock mine, broken tools mean lost money. Machines have to survive constant water spray, thick grit, mud, and operators who don't always handle things gently. The YT series uses simple, rugged fixes for these problems: built-in oil tanks that constantly feed lubrication to the piston, reinforced steel front heads that won't crack when dropped, and balanced handles that keep the vibration out of the operator's joints.
By focusing on your actual rock hardness, tunnel limits, and parts support, you can buy a YT27/YT28/YT29A Rock Drilling Machine fleet that lasts for miles of tunnel instead of failing after a few weeks.
To see the full catalog or talk about custom setups and fast shipping, check out the official site at: https://www.y-sld.com/
