Wenzhou, Zhejiang May 8, 2026 (Issuewire.com) - A Reliable Guarantee Under Extreme Temperature Conditions

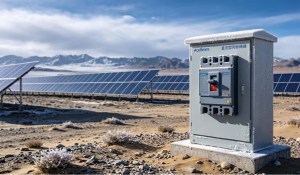

In a remote photovoltaic power station situated in the high-altitude regions of the Gobi Desert, the daily temperature fluctuation approaches 50°C. In the early morning, equipment may be encased in layers of frost; by high noon, the ambient temperature inside the electrical cabinets often exceeds 60°C. In extreme temperature environments (ranging from -40°C to +70°C and above), Molded Case Circuit Breakers (MCCBs) face core issues such as material aging, mechanical jamming, drifting of electrical protection characteristics, and the degradation of insulation and arc-extinguishing capabilities, which directly impact protection reliability and service life. The continuous normal operation of MCCBs under extreme ambient temperatures requires the support of specialized heat- and cold-resistant mechanism designs, special materials, and ultra-high-precision craftsmanship. AceReare Electric is a Reliable Chinese Supplier of MCCB Solution, offering high performance, high cost-advantages, and high-efficiency delivery. AceReare is also a leading professional Chinese manufacturer of circuit breaker components, with 80% of its core parts being self-produced.
As critical first-line defense devices in power distribution systems, MCCBs protect industrial motors, PV inverters, and heavy machinery from the damages of overload and short-circuit faults. When such equipment is applied in extreme climate scenarios—stretching from sub-zero industrial cold storage to the sweltering heat of oil fields—the reliability of the internal tripping mechanism and the integrity of the insulating shell directly determine the safety of the site.
The Challenge of Extreme Temperatures: From Polar Cold to Desert Heat
In modern industrial scenarios, power infrastructure is continuously extending into the harsh edges of the geographical environment. Whether it is wind turbines in frigid coastal regions or mining equipment in tropical zones, temperature is a key variable affecting conductive performance and mechanical tolerances. Traditional power distribution components are typically calibrated only for a narrow "room temperature" range; once exposed to harsh external environments, their performance drops significantly. For engineers and procurement personnel, the core pain point is the derating of electrical components. The impact of extreme temperature differences is primarily reflected in the following four points:
Material Performance Degradation: When the temperature is >55°C, the shell (PA66/ABS) may experience softening, creep, and thermal deformation, leading to a decline in structural strength, accelerated aging of insulating materials, reduced insulation resistance, and increased risk of leakage. Coupled with internal temperature rise, the current-carrying capacity is derated (typically by 5%~10% for every 10°C exceeded). When the temperature is < -25°C, plastic embrittlement occurs, and impact strength plummets (the toughness of PA66 drops by about 60% at -40°C); the viscosity of lubricating grease increases sharply, resulting in larger operating forces and sluggish opening/closing; the large difference in thermal expansion coefficients between metal and plastic leads to stress cracking and seal failure during repeated temperature cycles.
Protection Performance Tripping: Regarding thermal-magnetic tripping, the bimetallic strip is heavily affected by temperature, with actions being slow in low temperatures and fast in high temperatures, creating a high risk of overload protection malfunction or refusal to move. Regarding electronic tripping, although there is temperature compensation, sampling errors and decreased protection accuracy may still occur in extreme temperature zones.
Decreased Mechanical Reliability: Thermal expansion and contraction cause changes in mechanism clearances, leading to jamming, bouncing, and poor contact. The deformation of the arc-extinguishing chamber and contact system reduces breaking capacity and arc-extinguishing effects. Loose terminals and increased connection resistance exacerbate localized overheating.
Professional Technical R&D: Material Selection and Structural Design
Located in Wenzhou, China, with a 7,000-square-meter modern production base, AceReare Electric a professional original manufacturer integrating R&D, production and sales, specializing in molded case circuit breakers (MCCB), air circuit breakers (ACB) and related components. The enterprise has undergone over 10 years of “ingenious heritage” spanning two generations, accumulating extensive manufacturing expertise and a wealth of experience in serving both domestic and international clients. With solid technical accumulation and mature production system, AceReare Electric has become a professional Chinese MCCB manufacturer, with its comprehensive experience and professional strength ranking among the top. It possesses strong technical strength and manufacturing capabilities to overcome the pain points of product adaptation under extreme temperature differences.

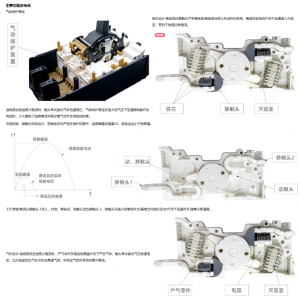

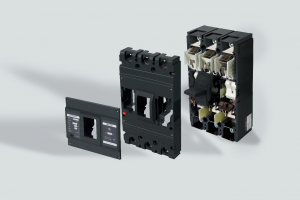

The core of the product’s resistance to extreme temperatures lies in the synergy between advanced materials and precision internal structures. For application scenarios such as high-voltage DC systems or 800V AC industrial grids, the choice of shell material is crucial. Utilizing high-strength, flame-retardant unsaturated polyester resin or specialized engineering plastics ensures that the shell maintains structural integrity at 70°C and does not crack at -40°C.
As a top-tier and reliable Chinese OEM manufacturer of electronic MCCB, AceReare Electric's electronic MCCB solutions are equipped with precision microprocessors. Their protection accuracy is superior to traditional thermal-magnetic products. These electronic components are less affected by ambient temperature fluctuations because their tripping logic is controlled by current sensors rather than physical metal deformation, making them an ideal choice for volatile climate environments. The electronic MCCBs feature functions for overload, long-delay inverse time, short-circuit short-delay inverse time, short-circuit short-delay fixed time, short-circuit instantaneous, and undervoltage protection (with optional residual current protection, ground fault protection, and phase loss protection). They protect lines and power equipment from damage with complete and accurate protection characteristics, improving power supply reliability and avoiding unnecessary outages. Among them, controllers with communication interfaces can perform "four-remote" (Remote Metering, Remote Signaling, Remote Control, and Remote Regulation) functions to meet the requirements of control centers and automation systems.

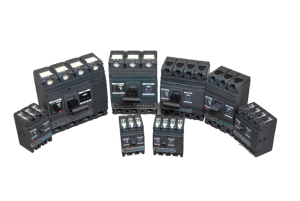

Notably, AceReare Electric’s latest ARM5 series MCCBs offer higher precision and reliability suitable for the field of extreme temperature differences. This product is a newly developed offering from the company; its design embodies modern current-limiting principles and manufacturing technologies, featuring characteristics such as being small and compact, modular, high-breaking, zero-flashover, and environmentally friendly. The circuit breaker is suitable for circuits with AC 50Hz/60Hz, a rated insulation voltage of 1000V, a rated working voltage of 690V, and a rated current of 32-630A for connecting, breaking, and carrying rated current. It provides reliable protection for lines and power equipment in cases of overload, short-circuit, and undervoltage, and can also be used for the infrequent starting and protection of motors. The circuit breaker can be installed vertically, horizontally, or with bottom-entry wiring.
The circuit breaker features an isolation function, and its corresponding symbols and reliability commitments must be supported by data to be persuasive. A professional MCCB solution provider cannot merely provide product parameter sheets; it must also transparently display the product verification process. AceReare Electric has established rigorous testing standards within its modern factory to simulate various extreme environments of actual application.
The testing phase utilizes environmental test chambers to perform cyclic temperature loading tests, verifying that the mechanical life of thousands of operations will not be damaged by thermal aging. The technical team analyzes the performance of the tripping unit under extreme cold and high heat to issue traceable test reports, confirming the accuracy of the tripping curves. Such objective data is vital for international projects in regions like North America, Europe, and the Middle East, where there are mandatory requirements for compliance with safety standards. This data-driven approach allows customers to rely on verified performance indicators rather than theoretical estimates when connecting AceReare products to remote power grids.
Production Guarantee: Process Stability and Quality Control
As a top 10 professional Air Circuit Breaker (ACB) manufacturer in China, AceReare Electric vertically integrates multiple process chains from mold design, stamping, spot welding, and pressing to injection molding and assembly. Building a stable mass production from a high-quality prototype is inseparable from a strictly controlled manufacturing environment. In the electrical industry, process consistency is the key to eliminating failures. AceReare’s Wenzhou headquarters adopts a Total Quality Management (TQM) system to monitor every link from raw material procurement to the final assembly of the MCCB solution.
Quality control starts with the inspection of silver contacts and copper components to ensure optimal conductivity and reduce internal heat. The intelligent manufacturing system utilizes automated production lines to minimize human error to the greatest extent, ensuring that the spring tension and contact pressure of every unit—the two core parameters affecting circuit breaker response speed—are completely consistent. With a highly stable production process, the manufacturer ensures that the 1,000th product off the line is identical in performance to the 1st. This adherence to "process consistency" allows the products to run reliably for long periods under harsh industrial conditions, resisting repeated wear and tear.
Service Extension: From Product Delivery to Application Support
True reliability goes beyond the hardware itself; it includes the technical support and professional capabilities that ensure the product is applied correctly within a system. AceReare Electric understands that every project has unique environmental constraints, and its service model has upgraded from a simple supply relationship to a technical partnership.
Whether providing detailed wiring diagrams for remote-controlled circuit breakers or giving guidance on appropriate derating factors for specific altitudes, the core of the service focuses on the long-term stable operation of the project. This type of customized application support is particularly important in complex fields such as the 1500V DC photovoltaic market and specialized industrial automation—scenarios where MCCB solutions need to coordinate precisely with other protective devices.
Reliability: The Perfect Fusion of Design and Manufacturing
Maintaining power stability in extreme temperature environments does not rely on a single feature, but rather on the comprehensive results of professional design, material science, and rigorous manufacturing. From the initial selection of temperature-resistant resins to the final issuance of traceable test reports, every production step of AceReare Electric’s MCCB solutions is aimed at reducing the risks brought by environmental stress.
As current industrial production becomes increasingly automated and decentralized, a single electrical failure can cause massive losses. By choosing an MCCB solution provider that values objective testing and stable production processes, enterprises can keep their infrastructure running steadily under the desert sun or in polar cold. True reliability is the peace of mind brought by a component that accurately performs its intended function every single time.
To learn more about high-performance power distribution solutions, please visit the official website: https://www.acereare-ele.com/.
