Langfang, Hebei Jun 10, 2026 (Issuewire.com) - If you have ever spent a ten-hour shift on a high-highway demolition project or a deep tunnel excavation, you know exactly when a tool is about to fail. When crews stand around because a piston has seized or a front head has cracked, the project schedule slips immediately. That is why sourcing your equipment from a reliable Wholesale TPB40/TPB60/TPB90 Air Pick Hammer Manufacturer From China is not just about comparing line items on a procurement sheet; it is about knowing exactly how those tools are built to survive the absolute worst conditions on-site.
Out here, we do not care about shiny corporate brochures or high-level marketing talk. We care about whether an Air Pick Hammer can run consistently at 0.63 MPa without freezing up in the morning chill, and whether the internal components can take millions of high-impact blows without shattering. To understand why certain tools outlast the rest, we need to step right onto the factory floor and examine the actual manufacturing choices made inside the SHENLI facility.
Secret 1: Forging Metallurgy vs. Cheap Castings
The first critical difference between a tool that lasts two weeks and one that runs for two years boils down to how the main body is formed. Many low-cost operations use cast iron or inferior steel castings for the cylinder and front head because it is cheaper and faster to machine. On a real job site, casting means hidden air pockets and internal porosity. The moment a worker puts heavy leverage on the handle to pry loose a chunk of broken granite, those internal flaws turn into stress fractures.
At a top-tier TPB40/TPB60/TPB90 Air Pick Hammer Manufacturer, we rely strictly on high-alloy drop-forged steel for our core structural components. Drop forging aligns the grain structure of the metal, providing massive structural integrity. Our cylinders undergo a specialized, multi-stage heat treatment—carburizing and quenching—to strike the perfect balance. We make sure the outer skin of the internal bore is incredibly hard to resist the constant scoring of the piston, while the inner core remains tough and slightly resilient to absorb the relentless shockwaves. If this heat treatment is off by even a hair, the cylinder will either score immediately or snap under heavy load.
Secret 2: The Micron-Level Piston-Cylinder Fit
In any TPB Pneumatic Air Pick, the piston is the heart of the hard-hitting action. It travels back and forth thousands of times a minute, driven by compressed air. The secret to hitting hard without wasting air lies in the micron-level tolerance between the piston outer diameter and the cylinder inner bore.
If the clearance is too loose, compressed air leaks right past the piston. Your air consumption skyrockets, your compressor runs hot, and you get weak, mushy blows that barely scratch the surface. If the clearance is too tight, the slightest temperature spike or minor speck of dust in the air line will cause the piston to gall, seize, and lock up completely. Our machine shop solves this by running automated internal grinding machines that hold tolerances within a fraction of a millimeter. This ensures that even when the tool heats up during continuous operation, the mechanical seal remains airtight without causing friction locks.
Secret 3: Managing the Freezing and Moisture Trap
Every project manager who has run air tools in damp tunnels or changing seasonal temperatures knows the headache of icing. As compressed air expands rapidly inside the valve chest and exhausts out of the tool, the temperature drops drastically. Any moisture carried in the air line instantly freezes, forming ice crystals that choke the exhaust ports or jam the automatic valve slice. When this happens, your operator has to stop, shake the tool, or pour anti-freeze oil down the inlet just to keep moving.
The design team addresses this by optimizing the air path and exhaust geometry within the TPB40/TPB60/TPB90 Air Pick series. By widening the exhaust chambers and utilizing high-grade polymer or specialized alloy valve blocks that resist ice adhesion, the air expands more uniformly. This prevents rapid localized freezing points. Furthermore, the flapper valve mechanics are engineered with a positive-seat design. Instead of relying on delicate springs that can lose tension or get gummed up by dirty oil and moisture, the valve moves purely on differential air pressure, making the Pneumatic Air Pick far more forgiving when the air quality from old field compressors is less than perfect.
Real-World Shock Absorption and Operator Survival

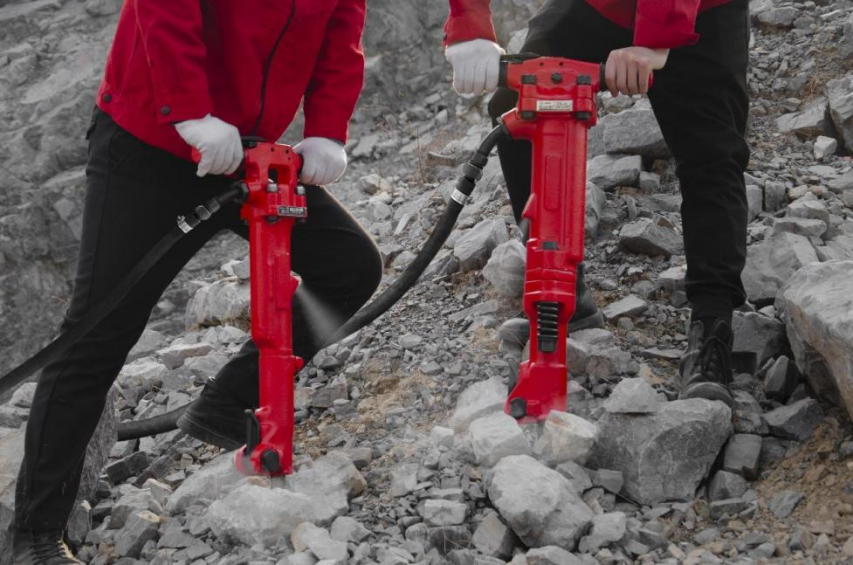

Let's talk about the person holding the tool. Demolition work is brutal on the human body. Prolonged exposure to high-frequency vibration leads to operator fatigue, white-finger syndrome, and frequent shift rotations that slow down your daily footage. A well-engineered SHENLI TPB40/TPB60/TPB90 Air Pick Hammer solves this by separating the handle housing from the hard-hitting cylinder via heavy-duty dampening springs. The energy goes straight down into the chisel, not back up into the worker's wrists and shoulders.

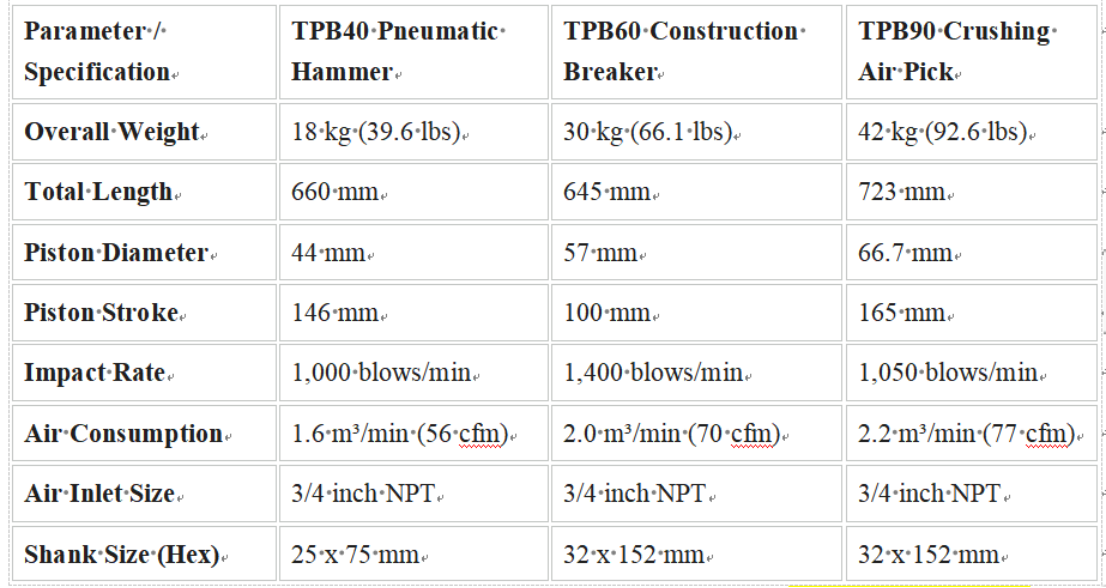

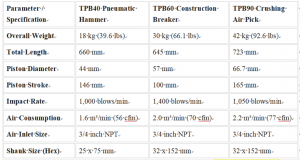

Matching the right tool to your specific job site is just as critical:
- Trenching and Medium Breaker Utility:The TPB40 is highly agile. When workers are operating in cramped utility trenches or working overhead to clear bridge deck scaling, they cannot wrestle a massive tool. The compact stroke length keeps the tool highly controllable while maintaining an aggressive strike rate to chip away material efficiently without destroying the surrounding stable structures.
- General Construction Demolition:The TPB60 is the workhorse for standard concrete cutting and road maintenance. It balances weight and strike power, making it the go-to choice for breaking up standard 6-inch concrete driveways, bridge abutments, and urban infrastructure repairs.
- Heavy Duty Rock and Deep Concrete Crushing:The TPB90 is reserved for the brutal stuff. When you hit high-psi mass concrete, reinforced foundations, or hard geological formations in quarries and tunnels, you need raw impact energy. Its long 165 mm stroke delivers massive foot-pounds of energy per blow to fracture high-density materials where smaller tools simply bounce off.
Sourcing Security and International Field Support
Buying equipment is more than just receiving a box at the yard. You need to know that when a crew is out in a remote mining sector or a major railway excavation across the globe, the wear parts—like retainer springs, air hose couplings, pistons, and bushings—are readily available and machined to exact universal standards.
Shenli Machinery has built its entire operation around this exact field reality. Our products have been exported to over 30 countries in Southeast Asia, Africa, the Middle East, and South America, and have won high praise from customers. We don't just ship machines; we provide complete technical support pipelines. Whether we are delivering specialized, heavy-duty fleets to infrastructure contractors in the Netherlands and the United States, or supplying high-precision batches to industrial buyers in Japan and India, we ensure our after-sales parts arrive without custom delays or component mismatch issues.
By holding strict adherence to a "quality first, integrity-based" operational model, our factory ensures that every single batch of pneumatic tools undergoes rigorous testing under real load before being crated.
When you look at the entire manufacturing process—from raw drop-forged alloy selection and micro-tolerance internal grinding to field-tested anti-icing valves and shock-absorbing handles—it becomes clear why these tools maintain an exceptional reputation on hard-hat jobs worldwide. If you are looking to upgrade your fleet or restock your supply yards with reliable, field-proven equipment, explore the complete technical specifications and product lines directly through the Shenli Products Directory.
To learn more about full equipment specifications, custom configurations, and international shipping options for heavy-duty pneumatic systems, visit the official corporate website at https://www.y-sld.com/
