Shenzhen, Guangdong Jun 8, 2026 (Issuewire.com) - A 500-square-meter enclosed digital fabrication workshop overseas tells a story familiar to many laser job shops. Six mid-size CO2 laser cutters and engravers run almost non-stop on acrylic signs and wooden craft pieces, while four fiber laser markers handle metal gift customization in a separate corner. The work is precise, the orders are steady, but the air inside the room tells a different story — a sweet, sharp acrylic smell hangs in the corridors, fine wood dust settles on every flat surface, and operators frequently stop production to wipe down laser lenses. To restore a workable environment, the factory turned to laser processing and engraving fume purification solutions developed by Shenzhen Knowhow Technology Co., Ltd. (KNOKOO), a Shenzhen-based manufacturer dedicated to the research, development, production, and sale of fume extraction equipment for welding, electronics manufacturing, laser processing, and other industrial scenarios.
Three Issues Hiding Behind a Productive Shop Floor
Behind the visible haze were three interconnected problems that had been building up over months of intensive production.
Solid micro-dust accumulation came first on the list. Cutting wood and acrylic with a laser beam generates large volumes of dry fine particles, with diameters typically falling between 0.5 and 5 microns. Once airborne, this dust travelled quickly from each cutting bed into the wider workshop, clouding sightlines and coating equipment, packaging materials, and finished goods alike.
Contamination of optical components was the second. The factory's built-in exhaust airflow simply could not pull particulate away from the cutting zone with enough force, so airborne dust kept settling on protective windows and field lenses. Laser power drifted downward, cut edges began to show scorching and burrs, and lenses had to be wiped down roughly every three days. On a handful of occasions, overheating caused a lens to crack outright — an avoidable but expensive failure.
Odor-driven complaints completed the picture. When acrylic is heated by a focused laser beam, it thermally degrades and releases sharply pungent VOC emissions. No open flame is involved, yet the smell saturates an enclosed shop within minutes. Operators reported discomfort even while wearing masks, and overall workplace satisfaction was beginning to slip.
Why Source-Side Dry Capture Was the Right Call
After walking the floor and reviewing the layout, KNOKOO engineers concluded that a centralized ducting project would be heavy, capital-intensive, and poorly matched to the realities of this particular shop. The emissions were dry; there was no oil mist; the equipment was spread across multiple work cells rather than concentrated on a single line. A distributed "one machine, one extractor, source capture" strategy fit the situation far better.
Each laser system was paired with an industrial-grade unit offering high negative pressure, linked through heat-resistant flexible hose directly to the exhaust port of the laser enclosure. By drawing contaminated air at the very moment and point of generation, the design avoids the cross-contamination that tends to occur when fumes are allowed to migrate through a workshop before treatment. It is the same source-capture logic that has helped position KNOKOO internationally as a one-stop portable fume extractor manufacturer for compact, mixed-process facilities.
Machine-Side Deployment in Two Models
The rollout combined two models working side by side.

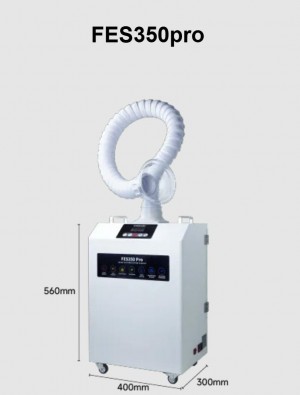

Six KNOKOO FES350 fume extractors were seamlessly connected to the six CO2 laser cutters and engravers, with each unit dedicated to a single machine so that the airflow path stays short and capture efficiency stays high.
Four KNOKOO FES800 fume extractors were placed next to the four fiber laser markers, each fitted with a flexible extraction arm that hovers close to the marking zone to draw away the lighter — but still irritating — plumes generated during metal engraving.
This kind of station-by-station rollout reflects the practical thinking that defines KNOKOO as a top industrial compact fume extractor company: scale capacity by adding focused, machine-side units instead of rebuilding entire ventilation infrastructure.
A Three-Stage Filter Train Tuned for Dry Emissions
Every unit on the floor relies on the same multi-stage filtration sequence, tuned for dry particulate and gaseous odors rather than oily or open-flame emissions.
The pre-filter stage stops larger wood chips and acrylic fragments, shielding downstream layers from premature loading.
The H13-grade glass-fiber HEPA layer captures 99.97 percent of fine particles down to 0.3 microns, covering exactly the size range that dominates laser-cut dust.
The deep activated carbon stage, packed with high-iodine-value carbon, adsorbs the molecular-level chemical odors released when acrylic vaporizes under the beam.
One point KNOKOO underlined clearly during commissioning is that this configuration is engineered strictly for dry smoke and gaseous odor adsorption — it is not intended for open flames or heavily oily processes. That kind of straightforward technical communication is part of how the company has built credibility as a China top high quality smoke purifier supplier.
Numbers from the Production Floor
Following installation and a stabilization period, on-site monitoring produced concrete figures.
Airborne dust dropped sharply across the workshop, with a particulate capture rate of 99.9 percent achieved at the source.
Gaseous odor removal hit 93 percent after activated carbon adsorption. Discharged air met direct-emission criteria, and the once-pervasive acrylic smell was no longer noticeable at operator stations.
With every machine and extractor running at full load, measured noise at operator positions held between 62 dB and 80 dB — well within the range that allows normal conversation during a shift.
For the maintenance team, the most striking change was the lens cleaning interval, which extended from once every three days to once every fifteen days. Unplanned downtime fell, and overall effective production capacity in the workshop rose by about 12 percent — a tangible return on the investment in air quality.
Summing up the change in plain terms, the factory's operations supervisor said: "KNOKOO's purification system is very practical. There is no complicated ducting project, and it directly solved the dust and odor problems we had when engraving acrylic and wood. Our laser lenses no longer need to be wiped every day."
Engineering, Service, and Reach
Shenzhen Knowhow Technology Co., Ltd. is headquartered in Shenzhen and operates with a clear focus on industrial fume extraction. The product portfolio covers welding, electronics assembly, laser cutting, marking, and a range of related manufacturing processes, and its work in soldering applications has also established the company as a China soldering fume extractor solution provider in the electronics sector. Increasingly, overseas buyers reference the brand as a China leading industrial fume extractor manufacturer.
Three working principles thread through projects like this one: engineering that prioritises reliability, energy efficiency, and low-noise operation; quality control applied consistently across every production batch; and a service model that begins with site assessment rather than catalogue selection. Functioning as a one-stop industrial purification solutions provider, KNOKOO accompanies clients from initial process evaluation through equipment specification, installation guidance, and long-term technical support — including localised customization for export markets.
Where the Laser Industry Is Heading
Laser cutting, engraving, and marking continue to expand across signage, gifting, electronics, and precision manufacturing. As lasers grow more powerful and production runs grow longer, the volume of dust and VOCs they generate scales right along with them. Regulators are tightening indoor air requirements, and downstream brands increasingly audit how their suppliers manage workplace emissions. Against that backdrop, source-capture fume extraction is shifting from optional add-on to standard production infrastructure — protecting people, optics, and output quality in a single move.
For more details on KNOKOO products, configurations, and industrial purification services, visit https://www.knokoo.com/.
