Shenzhen, Guangdong Oct 8, 2026 (Issuewire.com) - Interactive storefront display windows, outdoor architectural facades, self-service kiosks, and sterile medical cleanrooms require touch interfaces that deliver complete vandal resistance, weatherproof protection, and modern aesthetic integration. Traditional surface-mounted touch screens expose sensitive sensor glass and electronic borders directly to vandalism, weathering, and harsh cleaning agents. Interactive touch foils eliminate these vulnerabilities by enabling through-glass touch operation. Installed behind existing structural glass, an interactive foil converts standard windows and acrylic partitions into responsive multi-touch surfaces. As an established custom touch foil solution provider, GreenTouch designs and manufactures custom projected capacitive touch foils supporting glass thicknesses up to 20 mm, offering optical transparency, tailored dimensions, and multi-platform driverless compatibility.
How Interactive Touch Foils Enable Through-Glass Touch

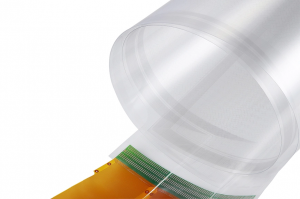

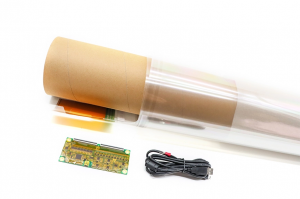

Through-glass interactive technology isolates all electronic components behind a protective architectural barrier. An interactive touch foil consists of two flexible optical-grade polyester (PET) sheets encasing a microscopic grid of conductive copper micro-wires. This grid connects to an external controller board via a flexible printed circuit (FPC) tail. When an AC excitation voltage is applied across the wire grid, it generates a projected capacitive electromagnetic field that penetrates through the non-conductive glass overlay.
Furthermore, through-glass architecture supports absolute hygiene and security. Because the touch foil and electronic controller reside entirely behind the glass on the interior of the building or enclosure, the exterior surface remains a smooth, unbroken pane of architectural glass. Exterior vandalism, scratches, graffiti, rain, snow, and chemical cleaning solvents cannot reach or damage the touch sensor.
Select the Correct Substrate and Adhesive ArchitecturePermanent Optical Clear Adhesive for Long-Term Installations
Selecting an appropriate adhesive formulation represents a foundational decision for project longevity. GreenTouch offers touch foils with factory-laminated optical clear adhesive (OCA) designed for permanent wet lamination to the interior surface of glass windows. Permanent OCA lamination provides optical index matching, reducing internal light reflections, eliminating air gaps, and delivering high mechanical bond strength that prevents bubbling or delamination across multi-year deployments.
Removable Cling Substrates for Temporary Promotional Windows
For retail storefront promotions, seasonal marketing campaigns, and leased commercial spaces, permanent adhesive lamination may be impractical. GreenTouch provides electrostatic cling and semi-permanent adhesive formulations that allow the touch foil to be applied, removed, and repositioned without leaving sticky adhesive residues on commercial window glass.
Anti-UV Stabilization for Direct Sunlit Storefront Windows
Direct solar exposure introduces intense ultraviolet radiation that can yellow standard polyester films and degrade optical adhesives over time. GreenTouch touch foils incorporate anti-UV stabilized PET substrates and UV-blocking adhesive formulations that resist solar degradation, maintaining high optical clarity and dimensional stability in sun-facing commercial installations.
Calibrate Controller Sensitivity for Thick Laminated GlassHigh-Voltage Excitation Drivers for Penetration Up to 20 mm
Operating through thick architectural glass requires sophisticated touch controller electronics. GreenTouch touch foil controllers incorporate high-voltage excitation drivers that boost signal-to-noise ratios (SNR), allowing reliable touch detection through single-pane glass, laminated safety glass, and double-glazed insulated units up to 20 mm thick.
Dynamic Environmental Baseline Capacitance Tracking
Controller firmware incorporates dynamic auto-calibration routines that continuously track environmental baseline capacitance. These algorithms compensate for temperature shifts, relative humidity changes, and external moisture accumulation on the outer glass surface, preventing false touches caused by rain or condensation while maintaining rapid response times under 10 milliseconds.
Customize Dimensions, Aspect Ratios, and FPC Exit TailsAspect Ratio Matching and Panoramic Stretched Displays
Touch foil sizing options allow equipment builders to match diverse display form factors. GreenTouch manufactures standard touch foils ranging from 15 inches to 120 inches in diagonal, with custom engineering available for ultra-large installations. Supported aspect ratios include standard 16:9 and 16:10, as well as customized ultra-wide stretched bar formats such as 21:9 and 32:9 for architectural digital signage.
Electromagnetic Shielding and Flexible Tail Routing
Flexible printed circuit (FPC) tail exit locations can be specified along any edge or corner of the foil to accommodate tight enclosure clearances. GreenTouch integrates grounded copper shielding layers into the FPC tail to prevent electromagnetic noise from nearby LCD backlights or power supplies from interfering with touch coordinate processing.
Verify Optical Clarity and Anti-Interference Performance
Interactive touch foils utilize ultra-fine conductive microwires with line widths under 10 microns, rendering the conductive grid virtually invisible to the human eye. With optical transparency exceeding 90% to 92%, GreenTouch touch foils preserve the vivid colors and luminance of rear-projected images or high-brightness LCD commercial monitors.
Suppression of Display Backlight Inverter Noise
High-brightness commercial displays utilize pulse-width modulated LED backlights that emit substantial high-frequency electrical noise. GreenTouch controllers integrate advanced digital frequency-hopping algorithms and active noise filtering that isolate touch signals from backlight interference, ensuring smooth coordinate tracking.
Execute Bubble-Free Lamination and Sample Validation
Flawless installation requires disciplined wet lamination procedures using specialized installation solutions, squeegees, and lint-free preparation environments. GreenTouch provides step-by-step video installation guides and professional application toolkits to ensure bubble-free results. Sourcing evaluation prototypes allows engineering teams to validate through-glass sensitivity on actual installation glass prior to full commercial rollout.
FAQ about Custom Touch Foil Solutions
Architectural integrators and kiosk manufacturers frequently evaluate these core technical questions when planning through-glass touch installations.
Can Touch Foils Operate Through Double-Glazed Insulated Glass?
Touch foils operate through solid single-pane glass or laminated security glass up to 20 mm thick. For double-glazed units with air gaps, the foil must be laminated to the front outer pane to avoid capacitive signal loss across the internal gas barrier.
Does Exterior Rain or Moisture Cause False Touches on the Window?
Advanced controller firmware incorporates water rejection algorithms that distinguish between distributed moisture film and localized finger touch capacitance, preventing false activations during heavy rainfall.
What Operating Systems Are Supported by Touch Foil Controllers?
GreenTouch touch foil controllers support universal USB HID protocols, providing driverless plug-and-play operation across Windows, Android, Linux, and macOS.
Can Touch Foils Be Applied to Curved Glass Enclosures?
Yes. The flexible polyester substrate conforms to gentle single-axis cylindrical glass curves, enabling interactive integration into curved retail display cabinets and cylindrical information columns.
Develop Your Through-Glass Solution with GreenTouch
Designing an interactive through-glass installation requires harmonizing optical transparency, dielectric glass properties, and electromagnetic noise suppression. GreenTouch combines specialized touch foil manufacturing facilities with comprehensive custom design services, competitive factory pricing, and international safety compliance, including CE, FCC, and RoHS certifications. Integrators and display manufacturers are invited to submit their architectural specifications and glass dimensions directly to https://www.greentouch.com.cn/ for custom engineering evaluations and rapid sample fulfillment.
